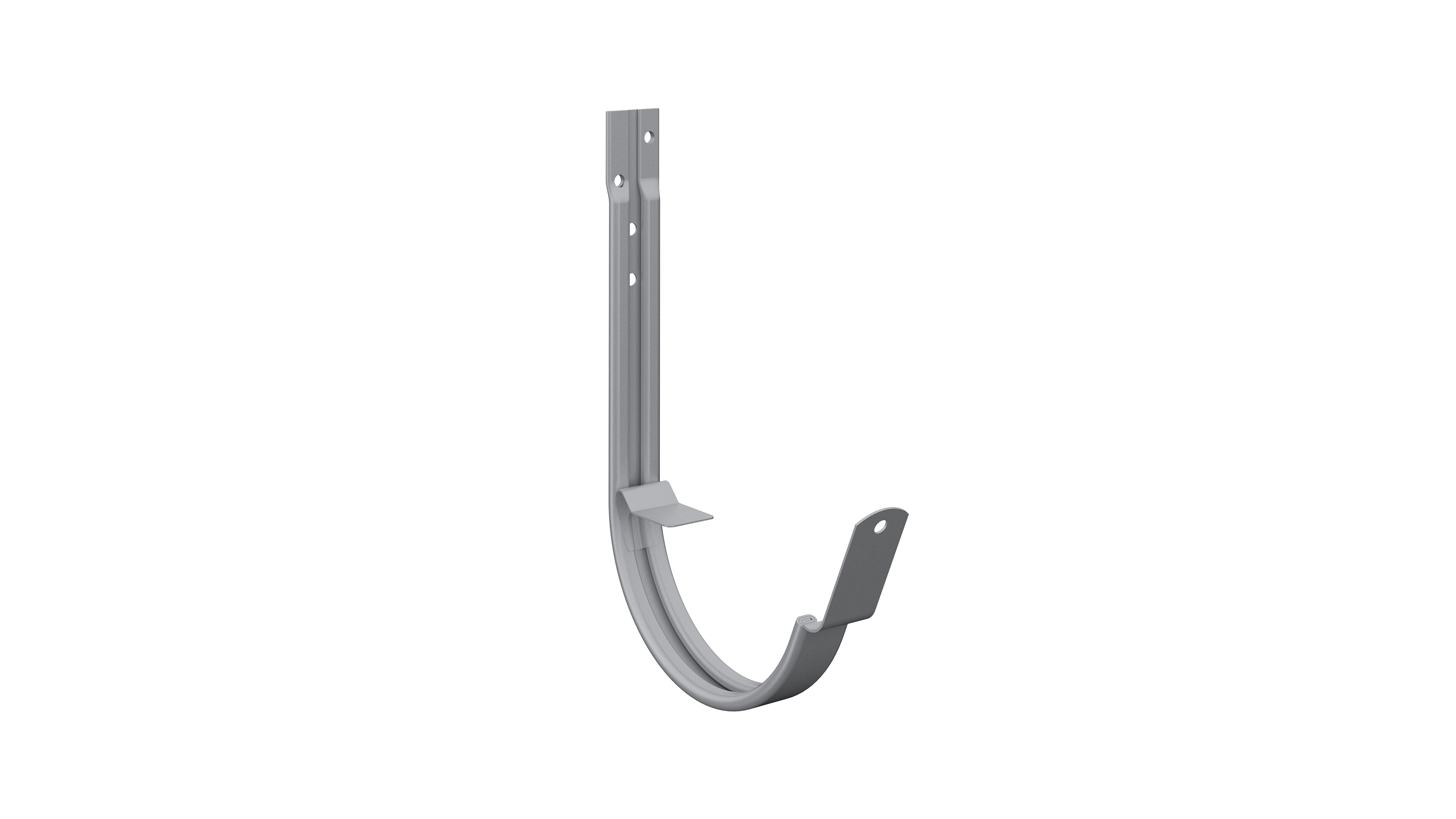

SKK16Shaft bracket with clamps 160 mm

Shaft bracket, length 160 mm. The bracket has a clip in front and back for easier installation. The shaft can be adjusted to desired slope at site to get the perfect fit.

This product is made of precoated galvanized steel in 1,0 mm thickness. Because of the high quality steel, it will age in the same way as all the other products in the system and no difference in design will occur.

According to applicable European Norms (EN 1462:2005) all brackets for rainwater systems need to be classified according to load bearing capacity. The EN norm has two load Classes H (750 N) and L (500 N). This bracket is tested and approved according to this norm with result within class H (high load capability).
