SKYFExterior wall rail window

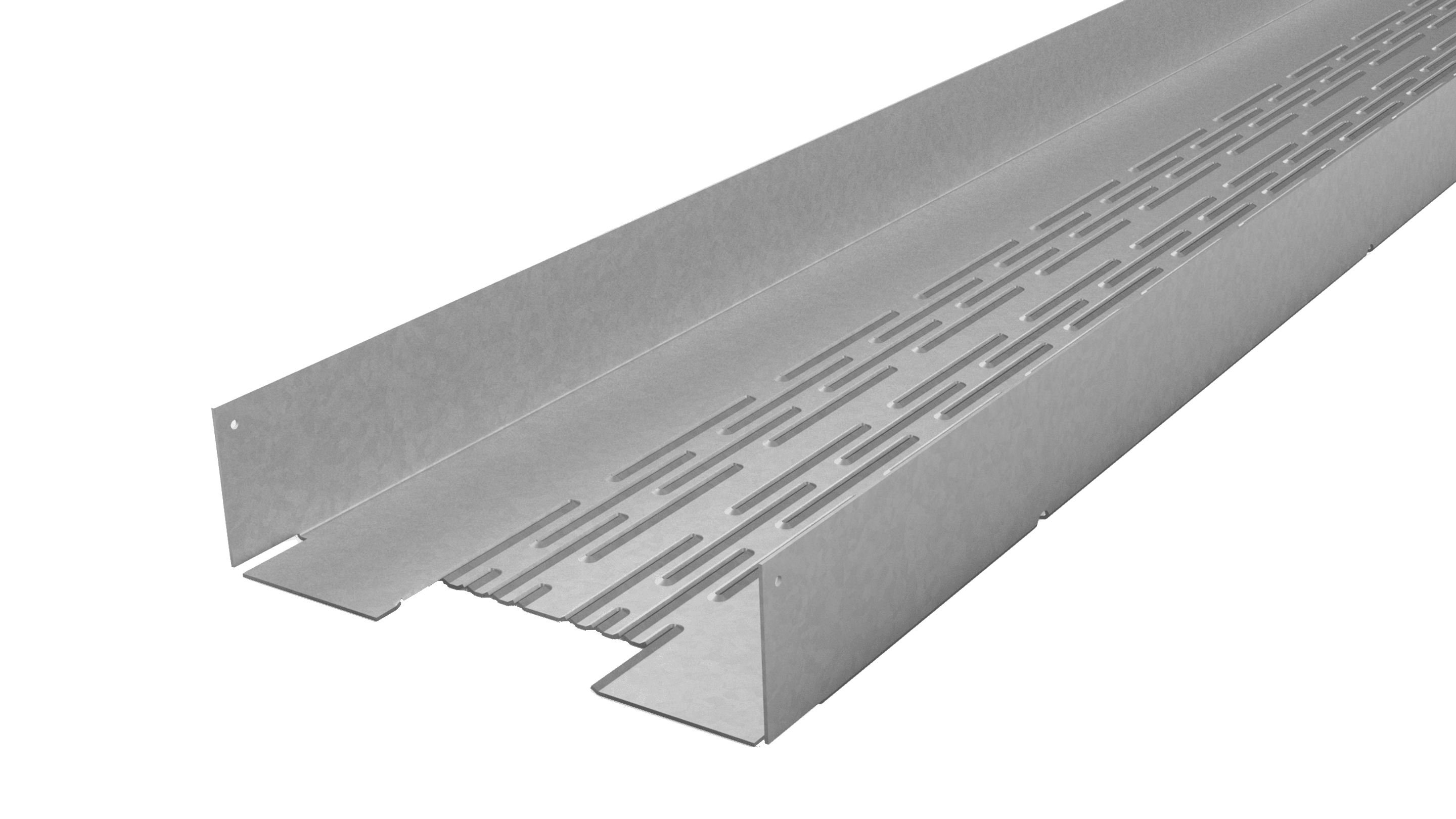

Slotted steel external wall rail for openings such as doors and windows in external walls. The rail has a cut-out to facilitate fitting to the vertical wall stud. The slotted flange of the channel limits heat transfer through the steel profile by extending the heat transfer path. The channel is used as a sill and hammer beam in the external wall structure and, together with the associated studs, forms an efficient framing solution for well-insulated external walls.

Material
Steel. SUB350GD Z275

Environmental information
The product is 100% recyclable and should be sorted as scrap metal.

Handling and storage
The product must be stored indoors in a dry, well-ventilated area with a constant temperature. A forklift must be used when loading, unloading or moving the bundles.
