FMUFlow meter

Applications

The meter is suitable both for setting up and for continous flow measurement. It is intended for permanent installation and must therefore be specified at the design stage.

There is a separate assembly, measuring, balancing and maintenance instruction for this product.

Design

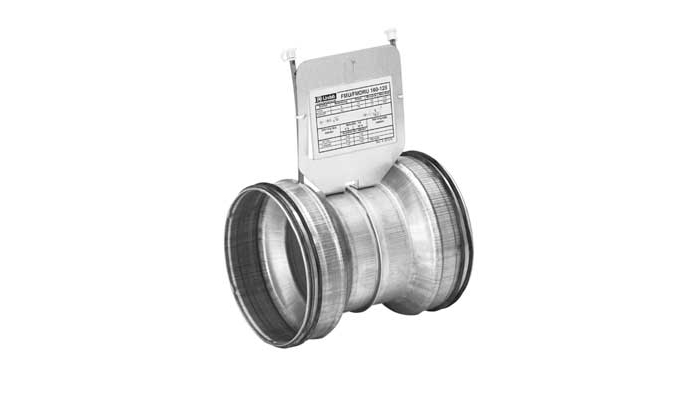

The meter consists of two reductions joined together, with measurement nozzles. Each nozzle has a removable plastic plug which prevents dirt from entering. It also eliminates air leakage when measurement is not done.

The unit permits insulation of up to 100 mm thickness to be installed without concealing the measurement nozzles or label plate. The plate can be rotated for best legibility, irrespective of the way the fitting is installed and can easily be removed, to be located away from the unit.

Flow meters with reductions of two dimension steps can be obtained, to give higher reading pressure in the measurement nozzles. This entails higher pressure drop and noise generation, however.
