FTCUUltraLink® Controller

Application

The Controller is suitable for measuring and controlling air flow and measuring temperature. Communication is established via analog signals and/or digital signal using Modbus.

FTCU can also be commissioned via Bluetooth.

The OneLink app is the perfect tool to monitor and adjust the airflow directly via a mobile device, which speeds up installation and commissioning.

FTCU are provided with remote support via cloud solution for trouble shooting.

Design

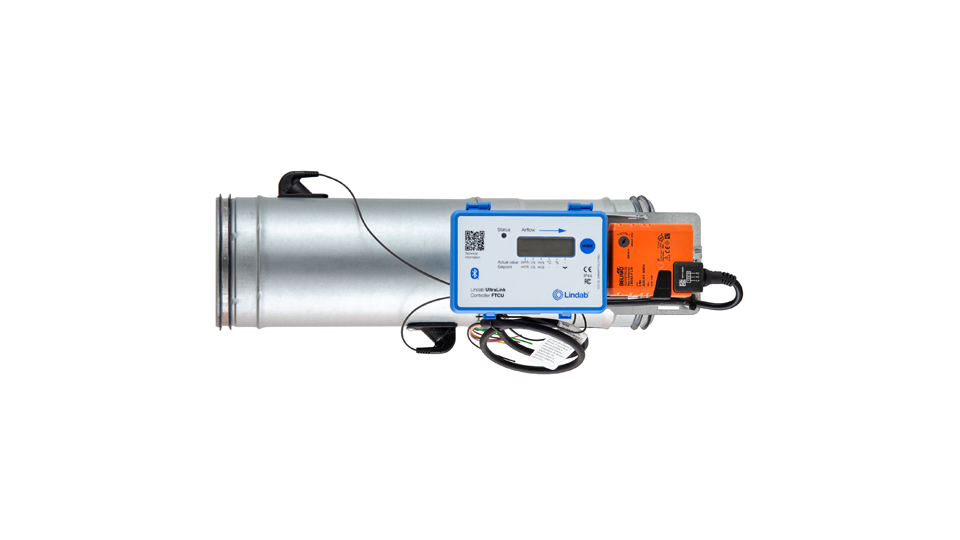

The Controller consists of a sensor body attached to a damper body with Lindab Safe gaskets.

Two transducers are mounted on the sensor body and connected to a display unit. The display unit is mounted on top of a shelf on the damper body.

FTCU has a pre-mounted cable which makes it easy to connect.

The shelf, FTES, can be used for mounting equipment such as an electrical junction box or a Regula Combi.

Firmware

Upgrading the firmware allows you to always have access to the latest functionalities in FTCU.

CharacteristicValue
