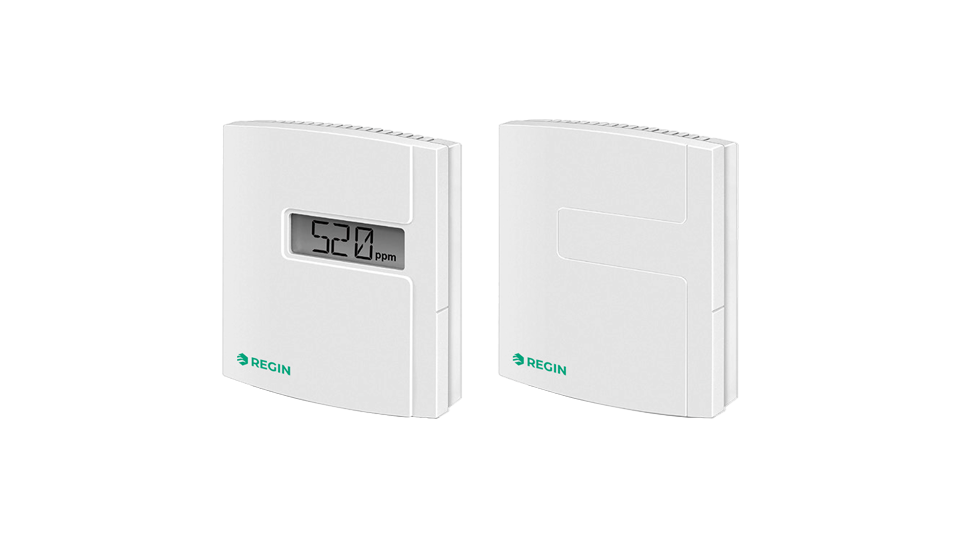

HTRT10A-DTransmitter

Transmitter for measuring humidity and temperature in indoor environment.

• Combined humidity and temperature transmitter
• Temperature sensors, 0... 10 V DC referring to 0...50°C
  and PT1000 class DIN B
• Output signal humidity, 0...10V DC referring to 0...100 % RH
• Humidity, 10...90 % RH
• Easy installation and service-friendly housing
• Excellent long-term stability

Temperature sensors
NOTE! The PT1000 sensor is not compensated for internal warm-up. The passive temperature output must be calibrated with a controller.

Relative humidity
The transmitter have a capacity thin-film element that provides a 0...10 V signal proportionall to the relative humidity in the range 0...100% RH.
The measure element responds quickly to changes in humidity and has excellent long-term stability.

Supply voltage
The transmitter uses a supply voltage of 24 V AC +/-10% or 15...35 V DC. It automatically detects and adapts to the supply voltage connected.
