BSLU

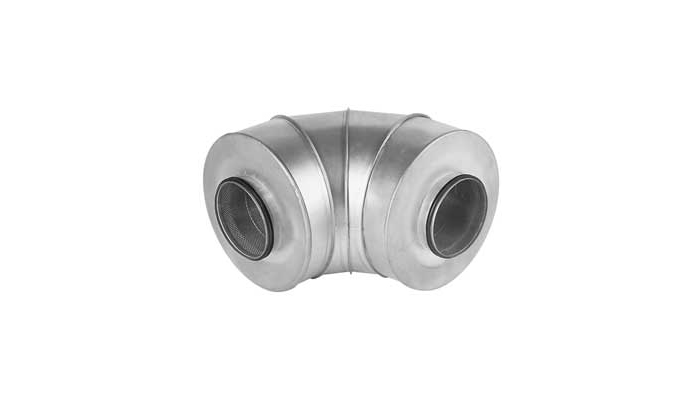

BSLU is a circular curved silencer.
Lack of space is a frequent problem in air treatment installations. This means that it is often difficult to find enough straight lengths to install a straight silencer. This problem can be eliminated by installing a curved silencer. For the same length, it mostly has better attenuation than the equivalent straight silencer. In particular, you get better attenuation at high frequencies (4 and 8 kHz).
Nominal insulation thicknesses are 50 mm or 100 mm.
Attenuation material is mineral wool. The BSLU's are made of sheet metal and an inner tube made of sheet steel with small openings to be able to withstand mechanical cleaning and at the same time not interfere with the insertion loss. The space between them is filled with mineral wool and a nonwoven cloth is inserted between inner tube and the attenuation material, to prevent fibres from the insulation getting into the duct system. Silencer can be cleaned by rotating nylon brushes, vacuum cleaner or damp cloth.
Tested according to ISO 7235 standard.
Special materials, sizes and flanges on request. Please contact Lindab sales.
To select the appropriate silencer and optimize connection size and length for the best performance you can use our online tool LindQST or our free to download software DIMsilencer.
