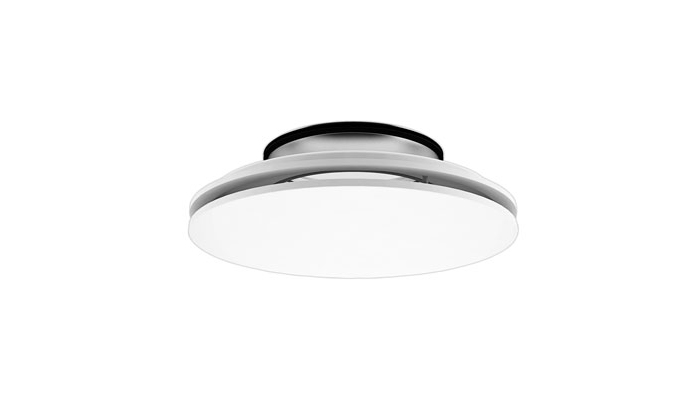

LCA is a circular diffuser with unperforated face plate and can be used for both supply and extract air. LCA is suitable for horizontal supply of cooled air where a high impulse is required and can be equipped with accessories of various types in order to achieve optimal function.
Installing a LCA diffuser in a plenum box type MB can help to achieve a stable airflow to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C and E are with rotating blade dampers for respectively supply and extract. Typically used in applications that don’t require a high balancing pressure in the plenum box.
- Suitable for both supply and extract air
- Suitable for horizontal supply of cooled air
- High impulse
- Option of 1, 2 and 3-way supply air
- Plenum box with several damper options
