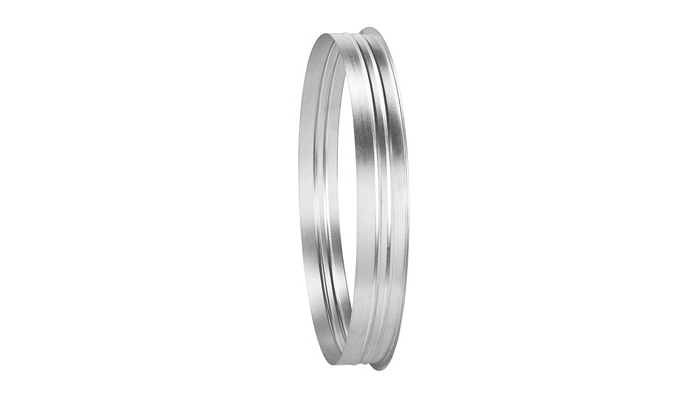

ILRTRSlide-on stub

Slide-on stub for installation in ducts of type SR in dimension range Ø560–900 where flange FL is used for joining.

After the duct has been shortened/fitted, add sealant etc between the swaged seams on the slide-on stub, after which the slide-on stub is inserted into the duct. The two swaged seams guide and retain the slide-on stub.

To finish off, the edge of the stub is swaged to both remove the sharp edge of the transition, and to fix the slide-on stub.

Please refer to the shortening instruction on page InstructionTransfer.
