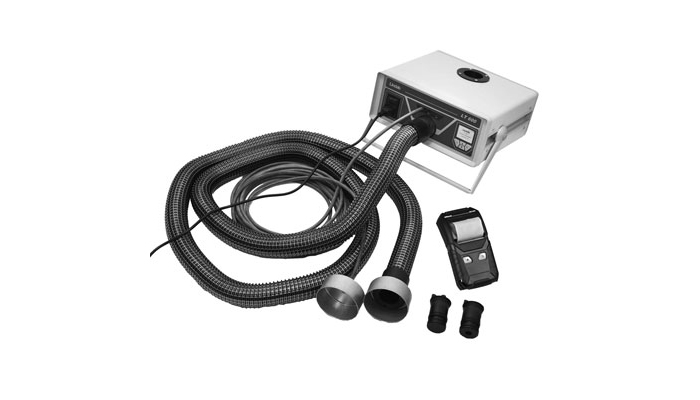

Complete equipment for field measuring of leakage in duct systems, e.g. for handing over measuring according to EN 12599.
Also for serial testing of production or in laboratories directly connected via USB.
Measures leakage, leakage factor and achieved tightness class according to EN 13779.
Suitable for measurements according to the standards EN 1507 and EN 12237 plus EN 1751 and EN 15727.
Large working range, for big systems as well as single fittings and residental ventilation systems.
Simple handling and automatic measuring cycle.
Operate with detailed user guide or in expert mode.
Printing of measuring protocol on site with termo printer.
Permanent data storage possible.
Customer and measure data management via supplied PC program.
Handy set, main device in plastic trunk, accessories in aluminium trunk, easy to transport and store.
Available special accessories and articles of consumption
Set of filter pads LTFP, 5 pcs.
Plastic hose LTLMS (Ø 50 mm length 10 m) with female connection Ø 100
Set of printer paper LTPP, for TD 100, 10 rolls
Seal-off bladder LBLADD, size 3 for Ø 100–250 mm
Seal-off bladder LBLADD, size 5 for Ø 200–400 mm
Seal-off bladder LBLADD, size 10 for Ø 315–630 mm
